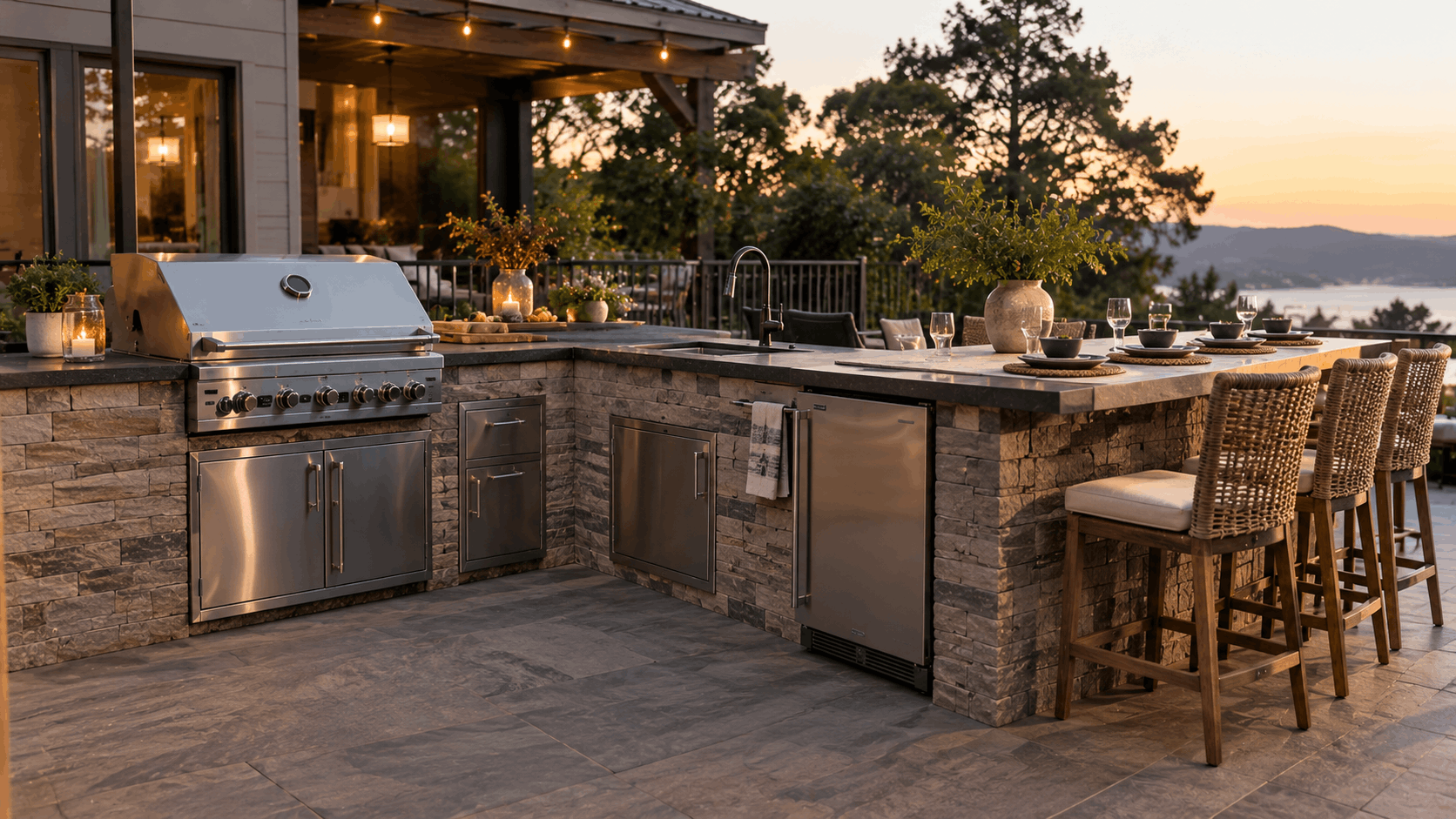

L-Shaped Outdoor Kitchens: Cost and What Else Fits
An L-shaped outdoor kitchen is two counter runs meeting at a 90-degree corner, splitting the grill and heat-producing appliances from prep, serving and seating. It's the default layout almost everyone reaches for, and if your patio has a real corner and roughly 10 by 10 feet of room, it's usually the right call.
It isn't the only shape that works. If your patio doesn't have a clean corner, forcing an L onto it is how you end up with three feet of dead space nobody uses. I build these to order, so I spend a lot of time on the phone talking hosts out of the shape they assumed they needed. Here's what an L-shaped kitchen actually costs, what it needs from your space, and three other layouts worth knowing about before you commit, including one almost nobody else sells.
What Makes a Kitchen L-Shaped
Two counter runs meeting at a 90-degree corner. One leg usually holds the grill and the heat-producing appliances, the other holds prep space, a sink or a fridge, and seating if there's room. The corner itself does double duty: it's where the cook can pivot between cooking and serving without walking anywhere.
That's the whole appeal. A straight run puts everything in a line, which works fine until you have more than one person cooking or your guests want to stand nearby without being in the way. An L gives you a hot zone and a cold zone that don't fight each other.
What an L-Shaped Outdoor Kitchen Costs
Because I price these by the linear foot instead of selling a fixed L-shaped set, there's no single sticker price. You're paying for two runs meeting at a corner connector, not a box off a truck. A common combination, one 6-foot leg and one 6-foot leg for 12 feet of combined counter, runs about $3,381 for the bare frame or $4,126 ready to finish, before appliances, countertop or whatever you clad it in.
That's the frame only. Premium prebuilt L-shaped kitchens with the grill, fridge and sink already installed run anywhere from roughly $7,000 to $14,000 depending on the appliance package, and that's before you've chosen a finish. The gap is the appliances: buy them separately and pick your own brand, and the frame itself costs a fraction of what a packaged set does.
The real number depends on your dimensions, your appliances and your finish, so I'd rather give you an actual quote than a range. That's free, and it's the same offer whether you end up building straight, L, U or curved.
Straight, L-Shaped, U-Shaped or Curved: Which Layout Fits Your Property
These are the four shapes I build most often, and each one solves a different problem.
| Layout | Best for | Floor space needed | Watch out for |
|---|---|---|---|
| Straight run | A fence line or the wall of the house, narrow patios | As little as you have, it just gets longer | One person at a time; prep space gets tight past a single appliance |
| L-shaped | A defined corner, splitting the cook from the crowd | Roughly 10 x 10 feet clear | Needs an actual corner to build into |
| U-shaped | Big groups, keeping the cook inside the work triangle | The most of any layout, closer to 12 x 12 | Can swallow a small patio whole |
| Curved | Round patios, pool decks, a radius wall you can't square off | Follows whatever arc you give us | Built-in appliances still need a flat face on the curve |
Straight vs. L-Shaped vs. U-Shaped vs. Curved: Quick Feature Comparison
If you already know your patio has a square corner and enough room, the L is the safe default, and it's the one appliance manufacturers design their fitted packages around. If your space is narrow, go straight. If you're feeding a crowd and want the cook standing inside the circle of guests rather than against a wall, the U earns its extra floor space. And if nothing on your property is actually square, keep reading.
The Layout Almost Nobody Else Builds
A curved outdoor kitchen isn't a bent countertop balanced on a straight box. The frame itself is welded round in the shop, the same aircraft-grade aluminum as a straight run, just bent to your radius before anything else gets attached.
Almost nobody offers this, because almost nobody welds to your dimensions in the first place. Big-box and prefab kitchens come in fixed sizes and fixed angles, so a curved patio either gets forced into a straight kitchen with an awkward gap behind it, or gets skipped entirely. If your pool has a radius, your patio is round, or you've got a seating wall that curves, this is the layout that actually follows it instead of fighting it.
The one thing to know: appliances still need a flat face to sit in. On a curved run, we build a short flat section into the arc wherever the grill or fridge goes, so the curve does the work everywhere else.
Quick Decision Summary
- Narrow patio, one cook: straight run.
- Square corner, want the grill separated from the serving counter: L-shaped.
- Feeding a crowd, want the cook inside the group instead of against a wall: U-shaped.
- Round patio, pool deck, or no square corner anywhere on the property: curved.
Most hosts land on the L because it's the shape they've seen most, and for a property with a real corner to build into, that instinct is usually right. But if you've been quoted a fixed-size kitchen and told your patio "doesn't quite fit it," that's a sign you're shopping the wrong category, not that your patio is the problem.
Send us your dimensions. We'll draw it free.
Straight, L, U or curved, a napkin sketch with measurements is enough to start. You'll get back a scaled drawing with a real price, usually the same day or the next business day, and we'll redraw it until it's right.
L-Shaped Outdoor Kitchen FAQ
Is an L-shaped outdoor kitchen a good idea?
Yes, if your patio has a defined corner and at least 10 by 10 feet of clear floor. It's the most efficient layout for separating the grill from prep and serving space, which is why most fitted appliance packages are designed around it. It's a poor idea on a narrow patio or anywhere without a real corner to build into.
What are the disadvantages of an L-shaped outdoor kitchen?
It needs more floor space than a straight run and an actual 90-degree corner to sit in. On a smaller patio, the second leg can end up crowding a walkway or a seating area. If your space is round, sloped at the corner, or narrower than about 8 feet in either direction, a straight or curved layout will usually fit better.
How much does an L-shaped outdoor kitchen cost?
Priced by the linear foot, a 12-foot combined run, two 6-foot legs, starts around $3,381 for the bare frame and $4,126 ready to finish, before appliances, countertop or cladding. Prebuilt L-shaped sets with appliances already installed typically run $7,000 to $14,000. See the full custom outdoor kitchen pricing for every configuration.
Can an outdoor kitchen be curved?
Yes. The frame is welded round to your radius in the shop rather than bolted together straight and bent afterward. It's the right call for a round patio, a pool deck, or any space where a square corner doesn't exist. Built-in appliances still need a short flat section wherever they sit.
Does a curved or L-shaped kitchen work on a wood deck?
Often, yes, in either shape. The welded aluminum frame runs about 30 to 35 pounds per linear foot, light enough for most wood decks without adding footers, which isn't true of a poured concrete or masonry island. Have your builder confirm the load either way. There's a full answer on outdoor kitchens for decks.
What if I'm not sure which layout fits my patio?
Send a photo and rough measurements and we'll tell you. Most of the time the property makes the decision for you once we can see the corner, or the lack of one.
Same logic applies at a property you keep for yourself, it just doesn't need to photograph well for a listing.
Ready to see actual numbers for your space? Get a custom outdoor kitchen quote, or call 1-800-914-0074.
